Logiq Tower™

Logiq Tower™ is a brainteaser extraordinaire. A stacking tower consisting of 15 unique pieces yet with more than 22,000 possible solutions. The goal is to build perfect cylinders around a central column using a combination of unique inner and outer puzzle pieces. Definitely challenging and admittedly addictive.

As you carefully interlock one piece with another, the stroke of genius is but one move away. With 4 different levels, Logiq Tower™ appeals to children, teens and adults.

Designed in Croatia and made entirely out of wood, Logiq Tower™ is produced using recycled & recyclable materials and water-based, non-toxic dyes. Promotes concentration, logical thinking, and problem-solving. Logiq Tower™ is a patented invention.

The Idea & Design

From an academic perspective, the designer's objective was to create a brainteaser toy using a polyomino-based language. In the end, pentomino-based shapes, each comprising of of five prism cubes (pento = five), were created to form the puzzle, and these unique pieces were to be set within a cylindrical framework.

In order to complete the puzzle, players would have to build inner and outer puzzle pieces, filling in the gaps along the way, until a complete cylindrical tower is finished.

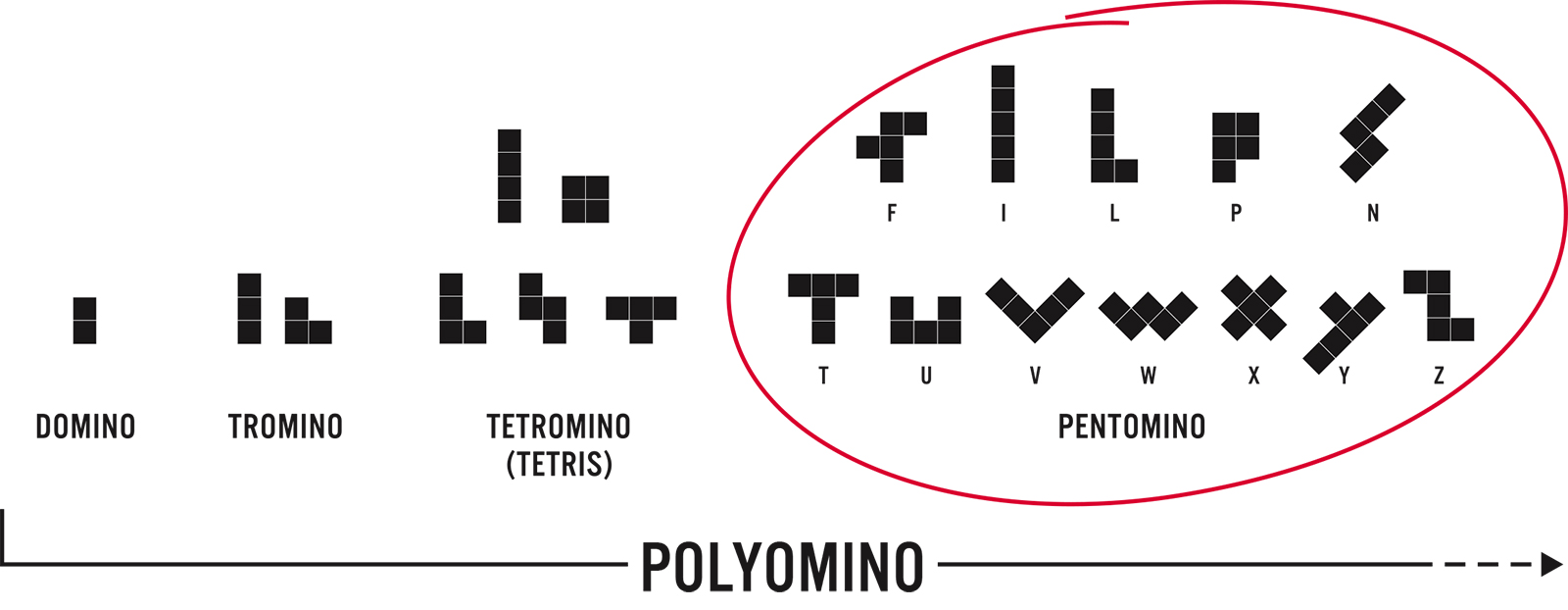

Logiq Tower™ uses a polyomino-based design language – a language whose family includes the well-known Dominoes and Tetris games.

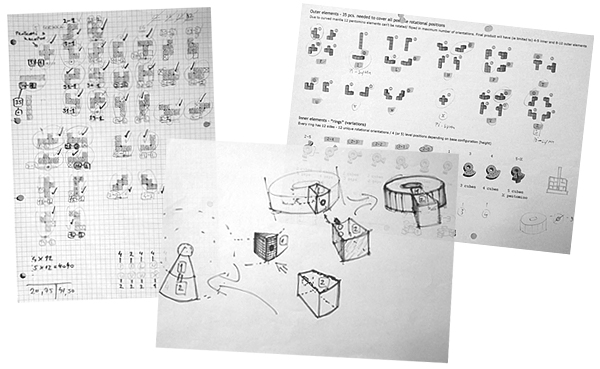

The pentomino forms in this context are of course curved to comply with the surface of a cylinder. Calculations and experimentation revealed that 12 different, free pentominoes produced 35 different curved shapes.

The fact that the curved shapes inherently reside in a rotational space resulted in a reduced number of unique rotational positions, thus reducing the total possible number of combinations.

To solve this dilemma of reduced complexity due to the rotation of parts, inner elements were created to interlock with an outer layer. Altogether, around 50 different shapes were designed. The next step in the progression of the invention, a base with a central post was added for better game play and stability.

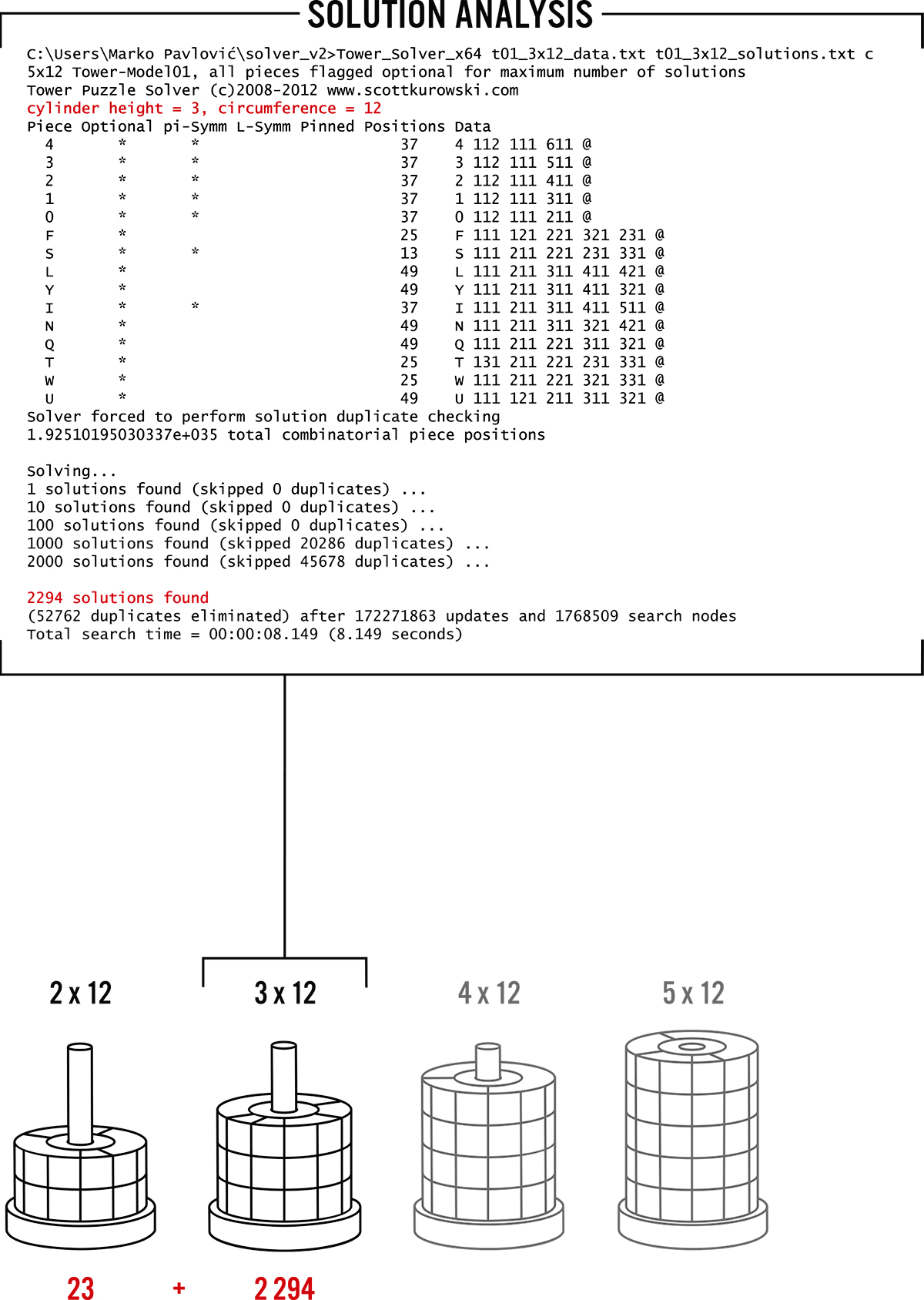

To analyze the puzzle pieces and possibly modify the pentomino designs and thus maximize the total number of unique solutions[1], a California-based software engineer Scott Kurowski was commissioned to build an application that generated every conceivable solution. This solution engine produced tens of thousands of matrices, removing mirror image duplicates and helping optimize the final puzzle design's play value.

[1] Unique solutions do not take into consideration reflected or inverted versions of the same solution i.e. duplicates are common, due to the three-dimensional nature of this puzzle. Duplicates of each unique solution are counted as the same solution and are thus removed from the total solution set tally.

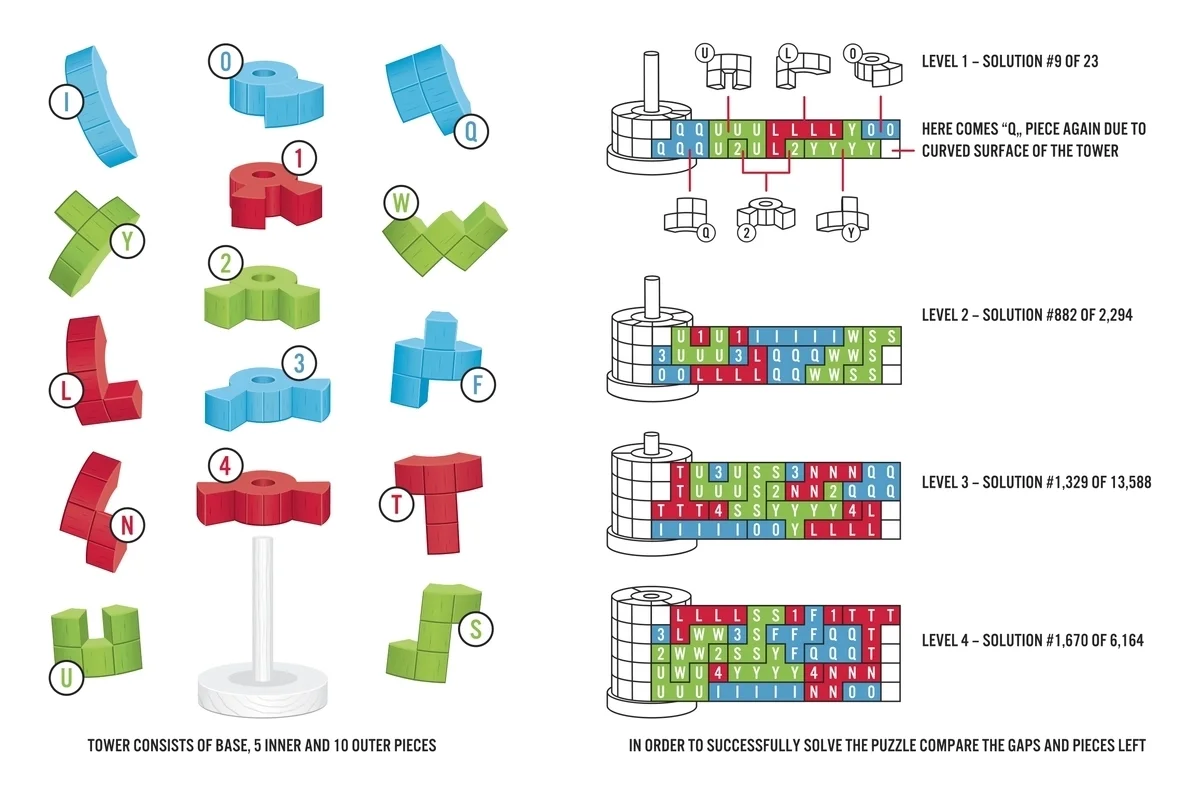

The final puzzle design consists of a base with a central post, 5 inner and 10 outer pentominal pieces. The total number of all possible unique solutions found across 4 levels of completed cylinders is 22,069 (with 507,587 eliminated duplicates).

Development of a life-size model

The model was made using raw MDF - a wood fiber sheet. All pieces of the prototype were cut and processed in a small wood-working studio in Zagreb, Croatia.

Product specs

Material: Eco-friendly rubber wood (hardwood)
Color: water-based, non-toxic dyes (visible wood texture)
Storage: cotton pouch
Size: 118 mm (4,6 in) high x 93 mm (3,6 in) diameter
Weight: 500 grams (1,1 lbs)

Build complete towers without any gaps

By using a different number of inner and outer elements (from as little as 6 puzzle pieces to the entire set of 15 pieces), when stacked correctly, one can form full cylindrical structures [2] of differing height levels. Taking this into account, this toy offers a range of difficulty - suitable for varying age groups, both children and adults. However, the time needed to solve each level will vary from person to person and the complexity is not always related to tower height.

[2] Full cylindrical structures have no gaps in their surface. Only full cylindrical structures count as fully solved cylindrical puzzles.

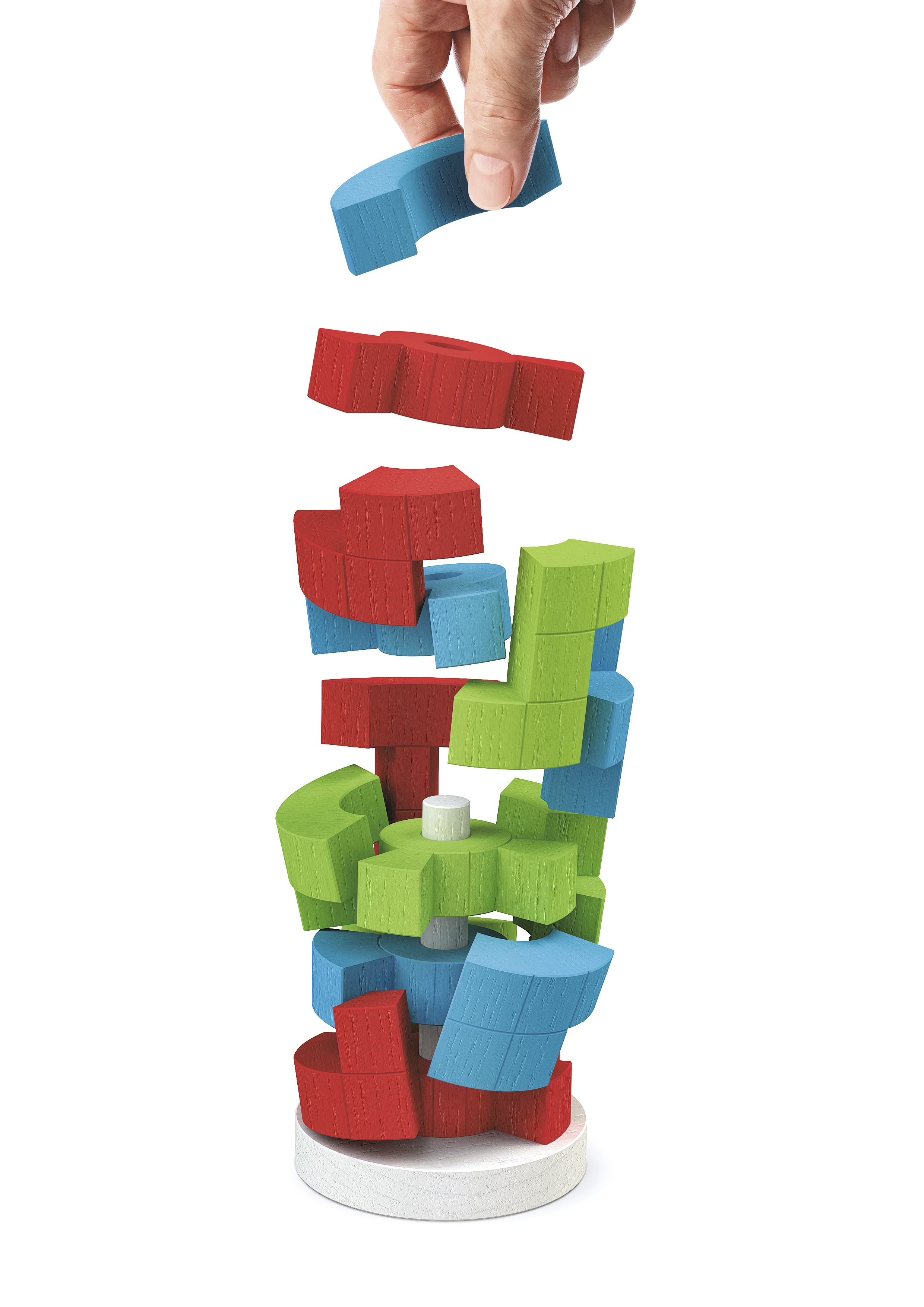

The goal of the puzzle is to stack inner and outer pieces around the central rod to build complete towers of various heights.

Develop and improve your skills

Concentration - focus on one task without allowing yourself to be distracted. Full concentration is required to meet the Logiq Tower challenge.

Logical Thinking - reasonable, reflective thinking is critical in making the placement decisions that will deliver results.

Problem-Solving - trying out new approaches and employing new ways of thinking to solve the spatial obstacles found in the puzzle is key to mastering the brainteaser.

Logiq Tower Speed Solving Tournaments

Interested in Buying, Selling, and Distribution?

Logiq Tower™ is produced and distributed exclusively by GCW Ventures Inc.
